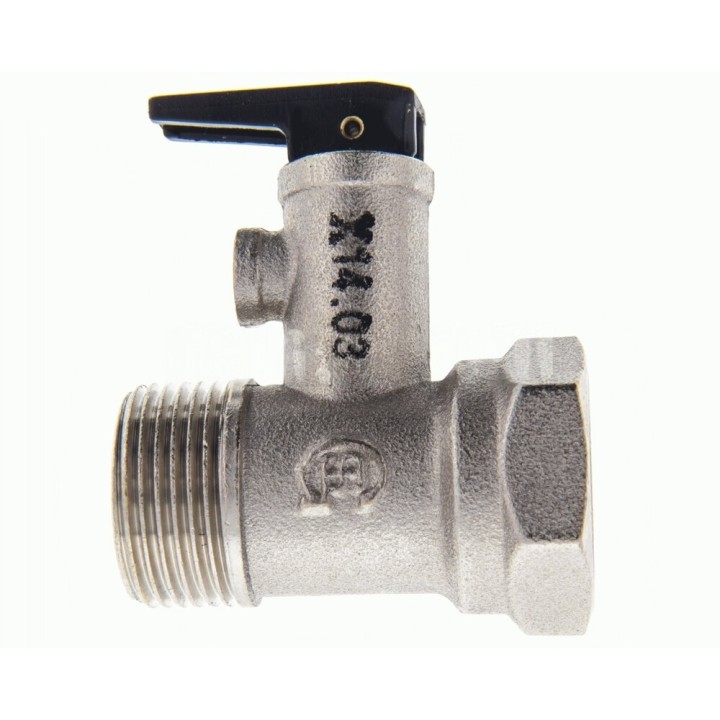

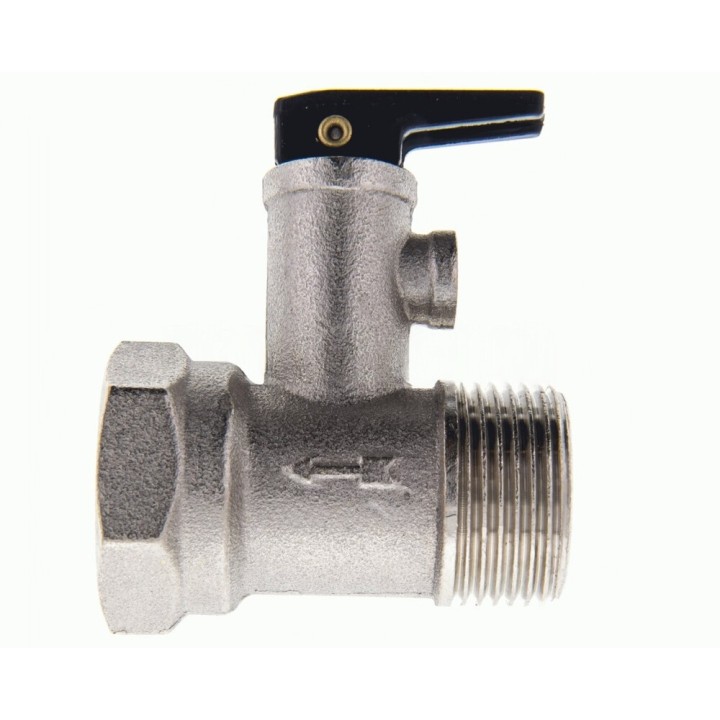

Safety Valve 10 Bar 3/4 Standard Electric Water Heater

✅ Relief pressure: Relief or discharge pressure of 10 Bar.

✅ These relief pressures are marked on the valve body in a visible and unmistakable way.

✅ The tolerance range of the relief pressure is around ± 0.5Bar.

✅ Working medium: Mainly water for domestic use and for electric water heaters or heating boilers, Working temperature: 0- 100ºC.

✅ This valve ensures the correct operation of the electric water heater or water heater thanks to its dual function; as a relief valve and as a non-return flow valve.

✅ Minimum inlet pressure: 1 Bar.

✅ Components made of stainless steel provide better valve performance as well as a long service life.

✅ Special knob design with safety and locking screw to prevent incorrect or improper use of the relief system.

✅ Special design of the overpressure discharge nozzle, easily adaptable to any flexible hose on the market.

✅ Connection threads: Male-Female threads according to ISO228 (BS2779) standard.
