Diagnostic Instrument Vacuum Pump Hvac Inspector Wigam images
Diagnostic Instrument Vacuum Pump Hvac Inspector Wigam
Ref.
WI13006039
Price:
€558.34
No tax

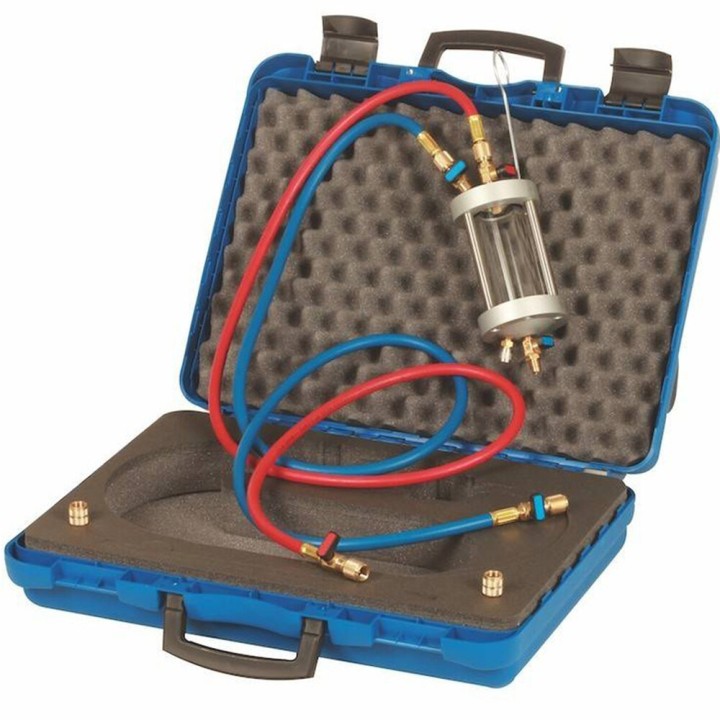

✅ The INSPECTOR-HVAC lets you check the “health” of your HVAC system simply by connecting to the high and low pressure ports.
The Oil And Oil/Coolant Mixture Will Be Visible On The Inside Of The Glass Cylinder. The Oil/Coolant Miscibility, The Quality Of The Oil And The Possible Presence Of Water And Polluting Particles Can Be Visually Verified In Order To Intervene Correctly.
The Discharge Valve, With A Large Passage Section, Allows The Drainage Of Contaminants.
©Also, The Hvac Inspector Allows Oil Samples To Be Obtained For Further Analysis. Includes:
2 Flexible Hoses 1500Mm (Blue And Red) With Valve.
Robust Plastic Briefcase.
Technical Features:
Length 240 Mm
Glass Cylinder Diameter 50 Mm
Maximum Pressure 40 Bar
Maximum Temperature 50 °C
Capacity 150 Ml
-
Brand
-
ReferenceWI13006039
