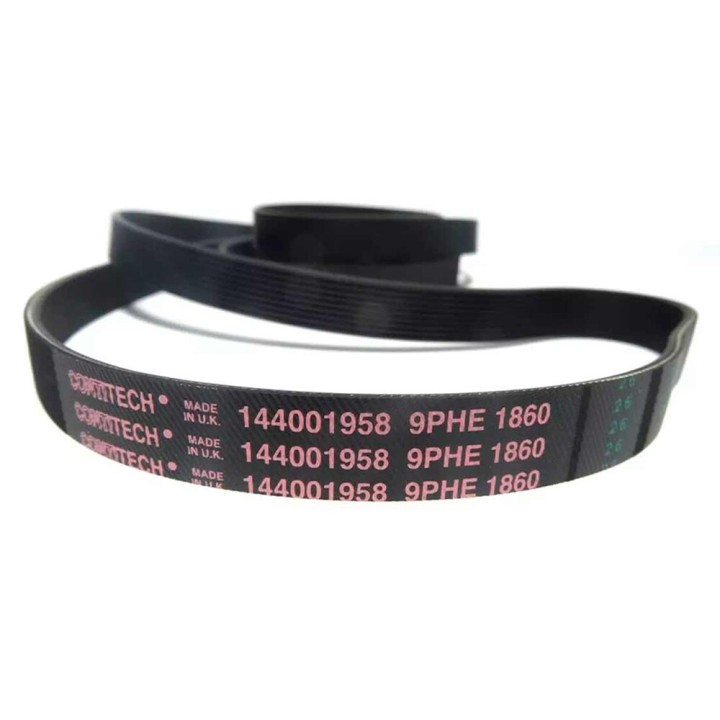

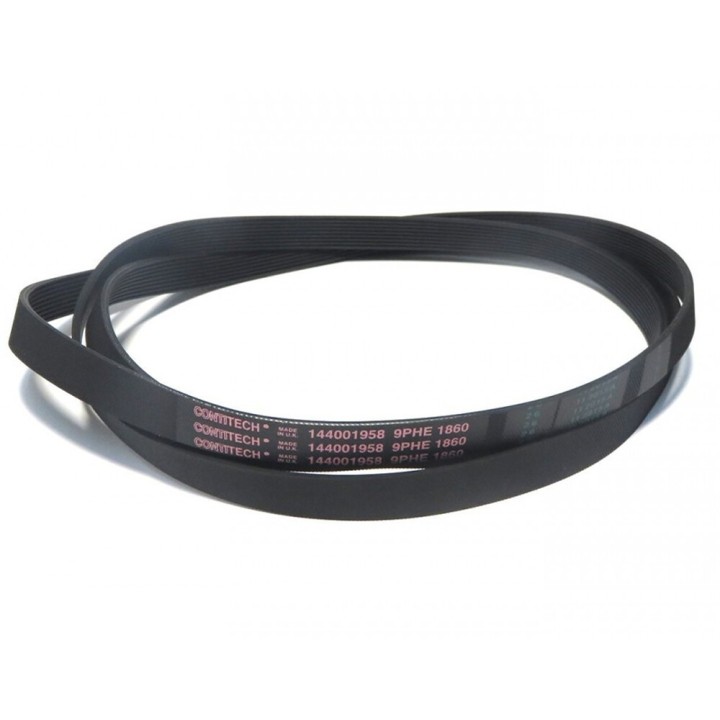

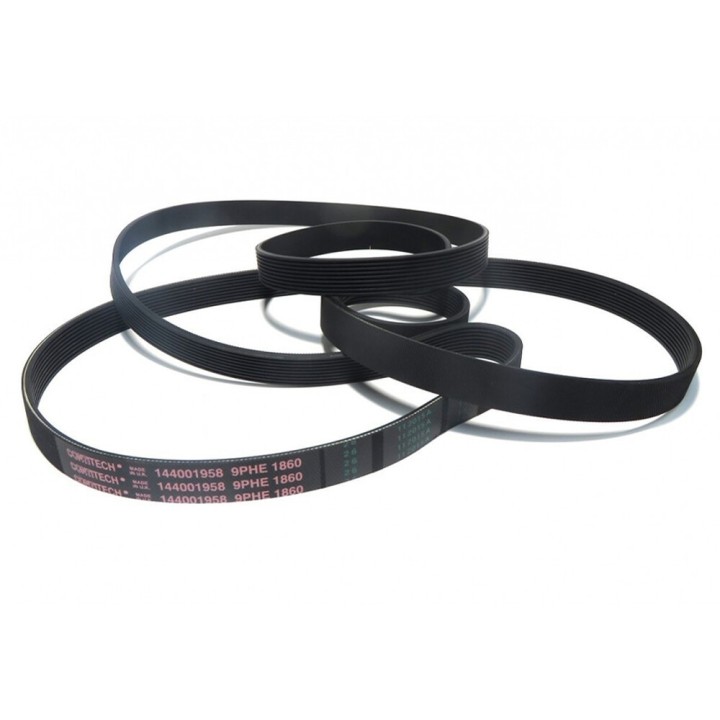

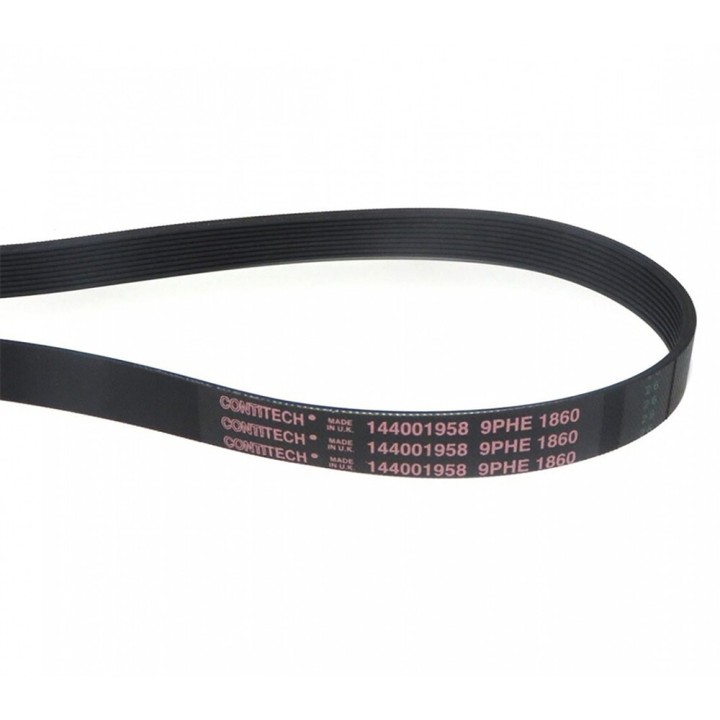

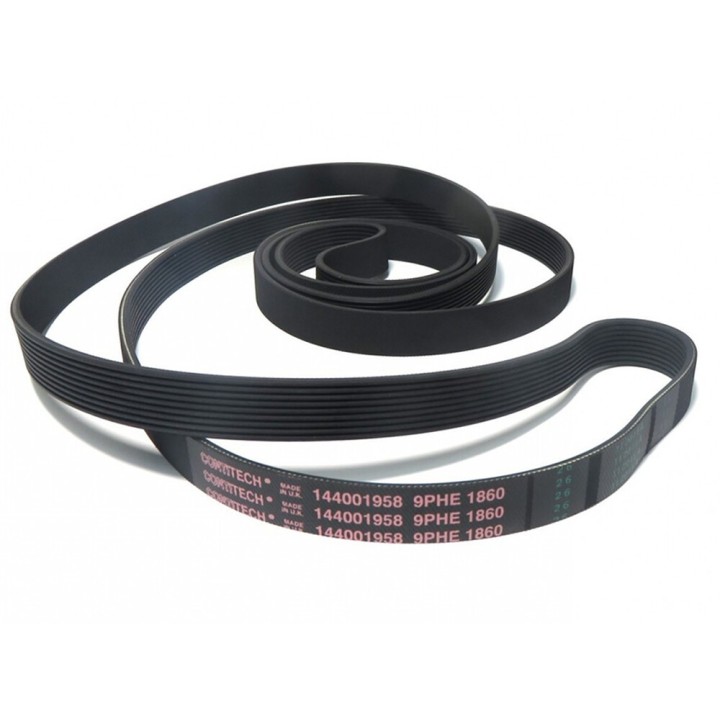

Dryer Belt Compatible With Indesit 9Phe 1860 C00145707 Original images
Dryer Belt Compatible With Indesit 9Phe 1860 C00145707 Original
Ref.
IB16UN781 EAN 8435576612388
Price:
€30.78
No tax
✅ Dryer belt.
✅ Dimensions: 1860 mm developed length.
✅ Belt number: 9PHE 1860.
✅ compatible with Ariston, compatible with Indesit, compatible with Zanussi, compatible with Electrolux, compatible with Edesa, Croslee, compatible with Fagor, Brandt, compatible with Aspes, Creda, compatible with Candy, Zerowatt, compatible with Otsein, compatible with Hoover, compatible with Rosieres, Iberna, compatible with Hotpoint, among many other brands.
✅ Compatibility: perfectly replaces belts 7PHE 1860, 5PHE 1860, EL 1860 H9, EL 1860 H7, 1860 H, 1860 H8, 1860 PHE.
Features: Teeth: 9
Channels: 8
Elasticity: Phe
Code: 144001958
Length: 1860 Mm

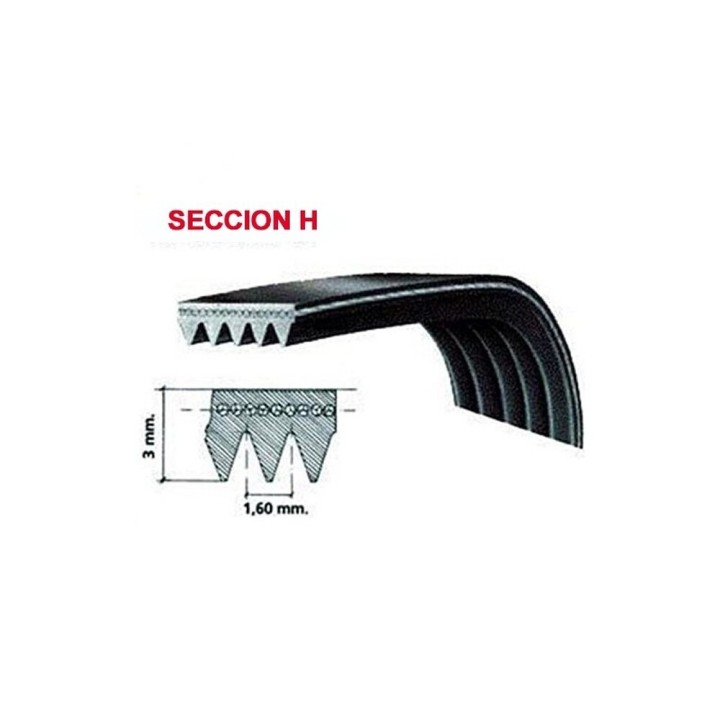

Slot: H-Type
Tooth Height: 2.5 Mm
Channel Spacing: 1.60 Mm
Manufacturer: Contitech.
Placement:
Once You Have Accessed The Back Of The Dryer Or Washing Machine:
- Pass The Belt Through The Motor Pulley, (The Smallest±A).
- Bring The Strap Through The Tensioner To The Side Of The Drum (There May Be 1 Tensioner, 2 Tensioners Or None).
- Slowly Turn The Bass Drum Pulley, (The Largest)
-
