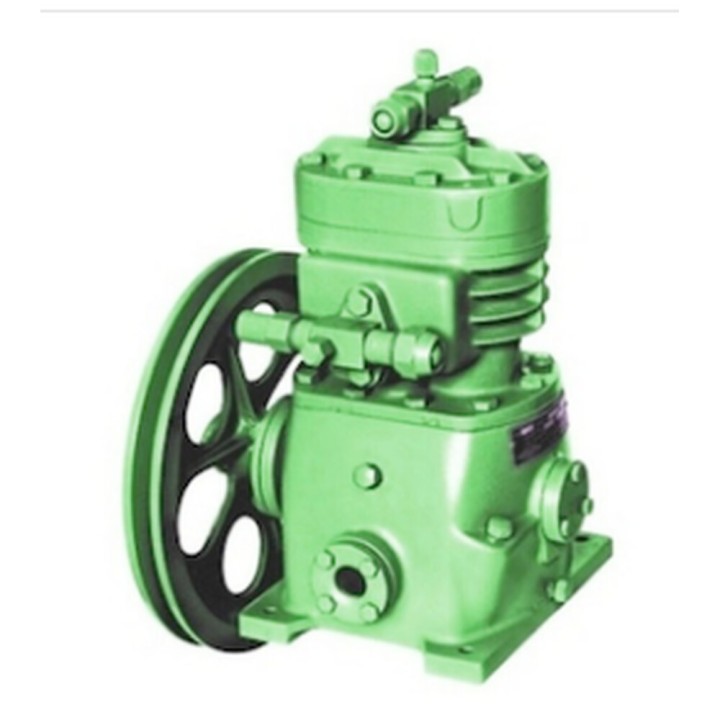

Bitzer Mod.I/Y R134A R404A Open Compressor Min. 565 Max. Rpm. 975 Low Medium High Temperature 1.70 2.92 M3/H images
Bitzer Mod.I/Y R134A R404A Open Compressor Min. 565 Max. Rpm. 975 Low Medium High Temperature 1.70 2.92 M3/H
Ref.
PK122301
Price:
€1,123.43
No tax
✅ Performance and evaporation range depend on the operating regime and r.p.m. of the compressor.
✅ Motor speed at 1450 r.p.m.
✅ Technical specifications.
✅ Refrigerants R-134A - R-404 A.
✅ Compression technology Open piston.
✅ Working range Low - Medium - High.
✅ Application range -30°C to +12.5°C | -45°C to +10°C.
✅ Number of cylinders 2.
✅ Displacement 1.70 to 2.92 m³/h.
✅ Connections. suction ODF 1/2".
✅ Connections. discharge
✅ Rotalock 115 x 140".
✅ Connections. discharge ODF 3/8".
✅ Mounting points 115 x 140mm.
✅ Oil charge 0.4l.
✅ Dimensions (length x width x height) 195 x 230 x 225mm. Weight 14kg.
-
