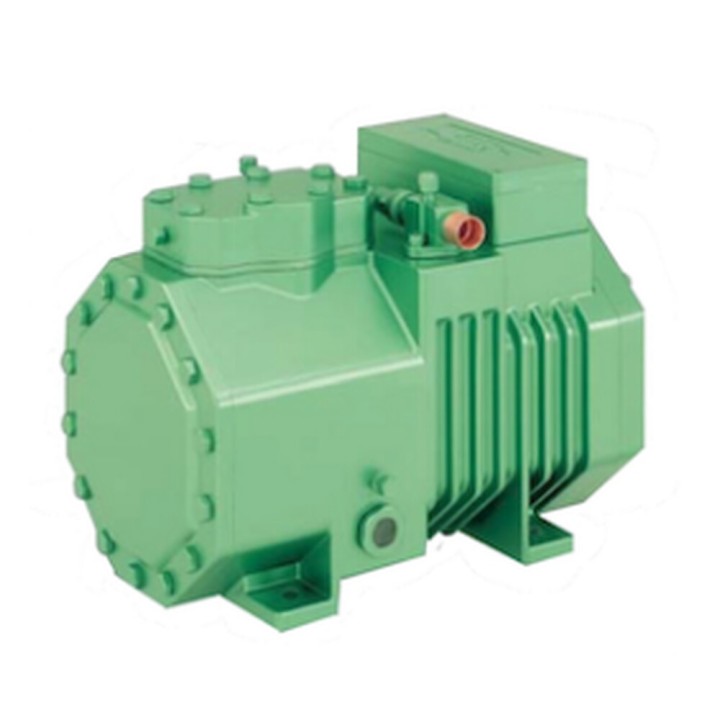

Bitzer New Ecoline 2Des-3Y (40S) R134A R404A 400V 3Cv Low Medium High Temperature 13.42 M3/H Compressor
PK122353 ✅ Ecoline compressors with Motor 1 and Motor 2. Performance figures given according to standard EN 12900 with condensing temp. +45 ºC, suction gas +20 ºC.
✅ Motor 40S: - 230V / 3 / 50Hz (D) - 400V / 3 / 50Hz (Y) - 460V / 3 / 60Hz (Y).
✅ Technical specifications.
✅ Refrigerants R-134A - R-404 A.
✅ Compression technology Semi-hermetic piston.
✅ Working range Low - Medium - High.
✅ Application range -25°C to +25°C | -45°C to +7.5°C.
✅ Voltage 400 / 3 / 50 Number of cylinders 2.
✅ Displacement 13.4 m³/h.
✅ Cooling capacity -10ºC 3980 | 6810W. Int. Max. Amp. 8.6A.
✅ Motor type 40S: 240V / 3 / 50 Hz Y - 400V / 3 / 50 Hz Y.
✅ Connections. suction ODF 7/8".
✅ Connections. discharge ODF 5/8".
✅ Mounting points 198 x 223mm.
✅ Oil charge 1.5l.
✅ Dimensions (length x width x height) 398 x 259 x 307mm. Weight 71kg.
-
