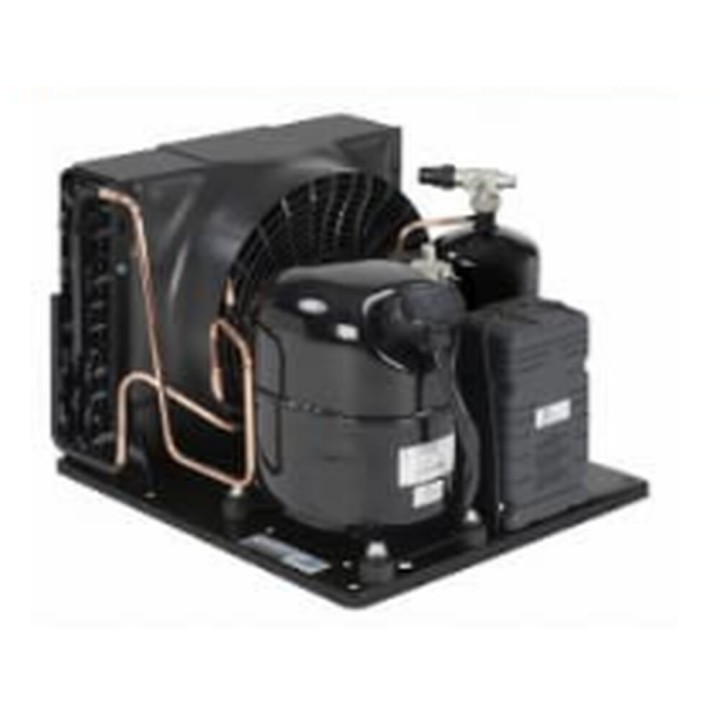

Tecumseh Air-Condensed Airtight Unit Tfht2480Zbr Three-Phase Boiler 400V/460V 1 3/4Cv Low Temperature 54.30Cm3

Tecumseh Air-Condensed Airtight Unit Tfht2480Zbr Three-Phase Boiler 400V/460V 1 3/4Cv Low Temperature 54.30Cm3

TECUMSEH
Ref. PK101906
€2,502.06
No tax
Ships in 24/48 h
Delivery in 2-7 working days
Share

✅ 448A / R449A / R452A.

✅ Performance figures given with ambient temp. +32 °C, superheat 10K, subcooling 3K. T - Tropicalised units for ambient up to +46 °C.

✅ At low temperature, performance calculated with R449A.

✅ For a temperature of -35ºC, R452A must be used.

✅ Technical specifications.

✅ Unit type: Air.

✅ Refrigerants R-452A - R-449A.

✅ Working range Low.

✅ Compression technology Hermetic reciprocating.

✅ Voltage type Three-phase.

✅ Application range -40°C to -10°C.

✅ Voltage 400 / 3 / 50.

✅ Displacement 53.2cm³.

✅ Cooling capacity - 35ºC 987W.

✅ Voltage 400V.

✅ Application Capillary/Valve. Int. Max. Amp. 7A.

✅ Connections. suction ODF 5/8".

✅ Liquid connection. 3/8".

✅ Condenser fan blade diameter 350mm.

✅ Condenser air flow 1750 m³/h.

✅ Fan type AC.

✅ Dimensions (length x width x height) 607 x 512 x 436mm. Weight 47kg.

✅ Mounting type: Receiver.

✅ Receiver volume 1.5l.
