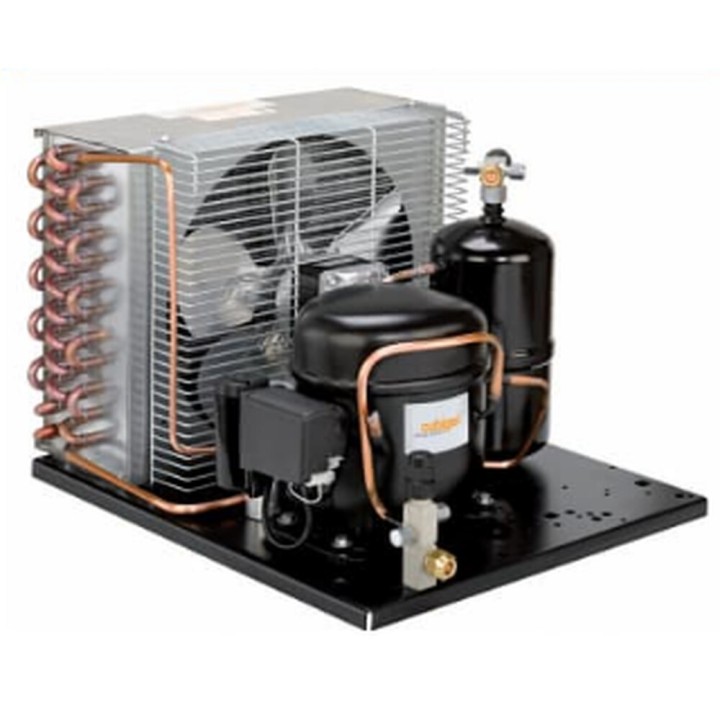

Cubigel Huayi Air-Condensed Hermetic Unit Cmx18Tg3N Cald. R452A 230V 7/8Cv Medium High Temperature 18.4Cm3 images
Cubigel Huayi Air-Condensed Hermetic Unit Cmx18Tg3N Cald. R452A 230V 7/8Cv Medium High Temperature 18.4Cm3
Ref.
PK103687
Price:
€935.20
No tax
✅ All units are tropicalised for ambient temp. of up to 43 ºC.
✅ Rt os. stated at ambient temperature +35 ºC, suction gas at +35 °C and liquid subcooling of 9 K.
Technical Specifications
Model Cmx18Tg3N
Voltage 200- 220/220-230V 50/60Hz
R404A Refrigerant
Capillary Valve Connection
Evaporation Temperature -25ºc To 10ºc
Maximum Ambient Temperature 43 °C
Displacement 18.40 Cm3
Diameter 39.43 Mm
Oil Type Iso Vg 32 Ester
Oil Load 500 Cm3
Power 7/8 Hp
Csr Engine Type
-
