Mini Thermostat Danfoss 077B0028 Cold Room Display Cabinets images

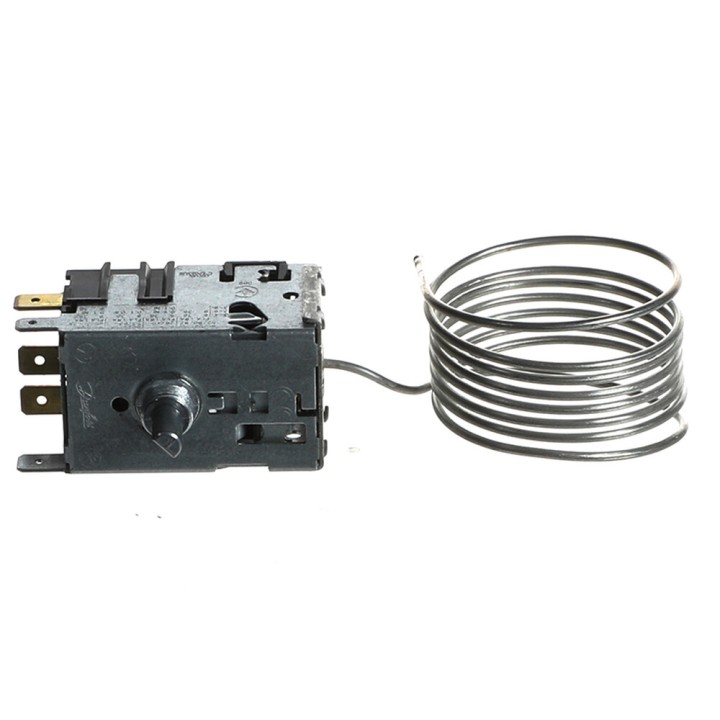

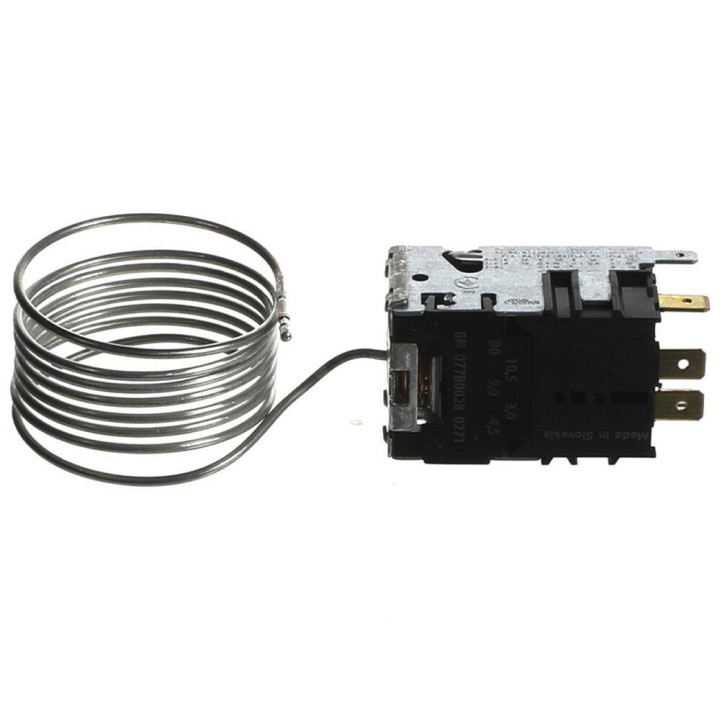

Mini Thermostat Danfoss 077B0028 Cold Room Display Cabinets
PK402028 EAN 5702424005948 ✅ Adjustable thermostat for display cabinets.
✅ Temperature range: maximum (-3º/2º) minimum (-3º/+12º).
✅ Capillary length: 1200mm Suitable for bottle coolers, beverage coolers, display cabinets.
✅ C.O: 077B0028.
✅ STANDARD BOTTLE COOLER THERMOSTAT.
✅ THERMOSTAT INFORMATION: DESCRIPTIVE CODE B0 WEIGHT 0.088 [kg] SET AT PRESSURE [MM HG] 760 mm Hg POS.
✅ SETTING Cold CAP. TUBE. 1.200 mm TEMP. MÍN.
✅ CUT-IN [°C] 3,0 °C TEMP. MÍN.
✅ CUT-OUT [°C] -4.5 °C MATERIAL CODE 077B0028 PACK THERM. 6,3 x 0,8 mm All MÁX. TEMP.
✅ CUT-IN [°C] 10,5 °C CUT-OUT AT MAX.
✅ TEMP. [°C] 5.0 °C Product identification data laser-printed on the product.
✅ Easy and durable product identification.
✅ Main contacts NC (Normally Closed) Compressor cut-off when the temperature drops.
✅ Terminals with blade connectors of 6.3 x 0.8 mm, 4.8 x 0.8 mm or combinations.
✅ Fits most domestic and light commercial fridges and freezers.
✅ Electrical loads of 6/36 A or 8/40 A (FLA/LRA), designed for a minimum of 300,000 cycles at full load.
✅ Reliable and durable switching function.- Service thermostat code No. supplied in Multipack⁃ Service thermostats include the relevant accessories and installation guides.
-
Brand
-
ReferencePK402028
-
EAN135702424005948
PK402028 EAN 5702424005948
