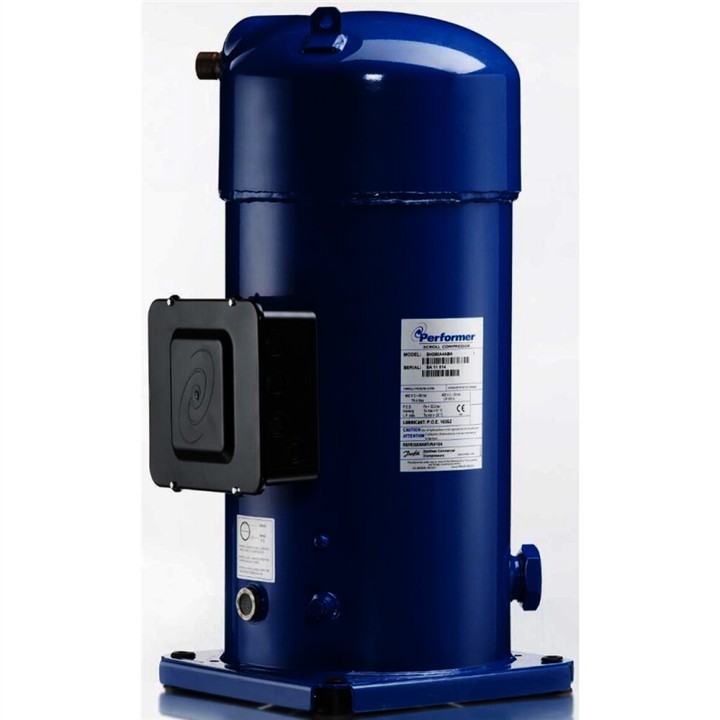

Maneurop Sh090-4 R410A 400V 8Cv High Temperature 88.4Cm3 Compressor

✅ Technical specifications.

✅ Refrigerants R-410A.

✅ Compression technology Hermetic scroll.

✅ Working range Air conditioning - Heat pump.

✅ Application range -30 °C to +15°C.

✅ Voltage type Three-phase.

✅ Voltage 400 / 3 / 50.

✅ Displacement 88.4cm³.

✅ Cooling capacity + 7.2ºC 21470W. Int. Max. Amp. 22A.

✅ Application Capillary/Valve.

✅ Connections. suction

✅ Rotalock Rot 1 3/4".

✅ Connections. suction ODF 1 1/8".

✅ Connections. discharge

✅ Rotalock Rot 1 1/4".

✅ Connections. discharge ODF 7/8".

✅ Mounting points 191 x 191mm.

✅ Height (mm) 482mm.

✅ Oil charge 3l.
