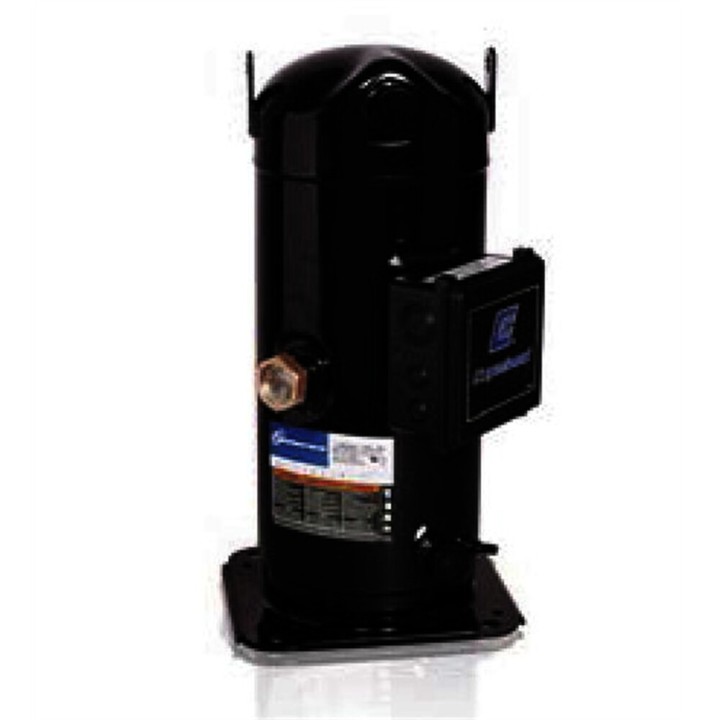

Copeland Scroll Compressor Zb66K5E-Tfd-567 R134A R404A R448A R449A R407A R407F R450A R513A 380V 9Cv 25M3

Technical Specifications© Compatibility With Refrigerants R-134A, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-513A Voltages 380-420 V To 50 Hz, 460 V To 60 Hz Frequency 50, 60 Hz Phase 3 Actions Given In Conditions -10Oc Evacuate Temp.; Temperature Of 45°C; Suction Gas Return Of 20 °C; 0K Subcooling For R-448A At 50Hz Cooling Capacity 14.65 Kw Power Input 6.51 Kw Police 2.25 Displacement 25.7 M3/H Overall Dimension / Net Weight 280 X 280 X 534 Mm (W X H X H) / 59.9 Kg Low/High Ps 22.6/32 Bar(G ) Maximum Operating Current 17.5 A Sound Power 80 Dba Oil Type Poe Ip 54 (Iec 34) Case Case
