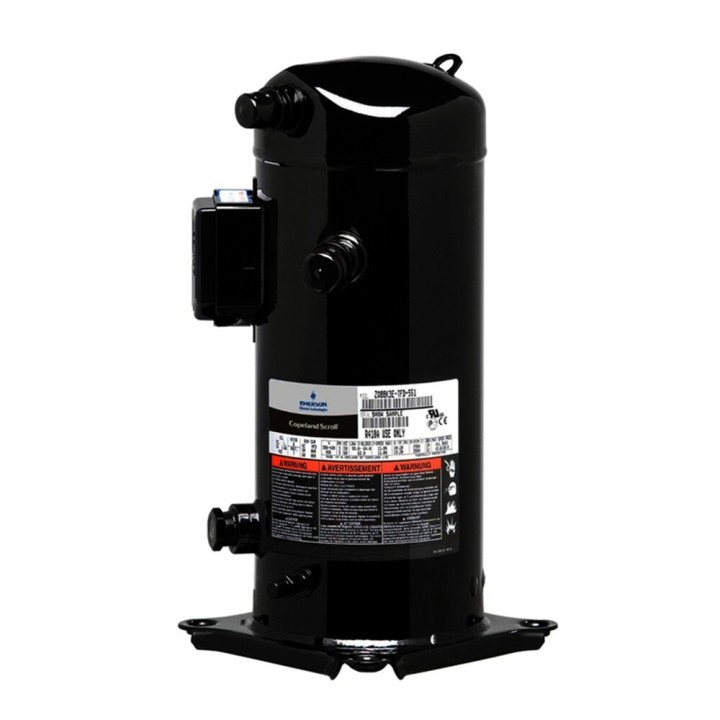

Copeland Scroll Zr48 K3E Tfd522 Compressor Tube R407C R134A Substitutes R22 380V 4Cv High Temperature 11.4M3

✅ Technical specifications.

✅ Refrigerants R-22 - R-407C.

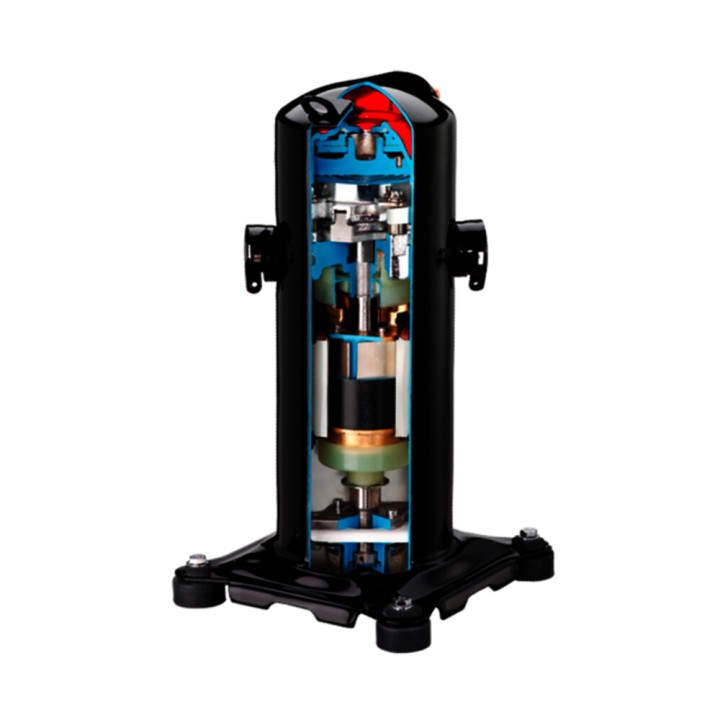

✅ Compression technology Hermetic scroll.

✅ Working range Air conditioning.

✅ Application range -20°C to +15°C.

✅ Voltage 400 / 3 / 50.

✅ Displacement 11.4m3/h.

✅ Cooling capacity + 7.2ºC 11800W. Int. Max. Amp. 10A.

✅ Motor type TRI.

✅ Application Capillary/Valve.

✅ Connections. suction ODF 7/8".

✅ Connections. discharge ODF 1/2".

✅ Fixing points 190 x 190mm.

✅ Height (mm) 417mm.

✅ Oil charge 1.4l.
