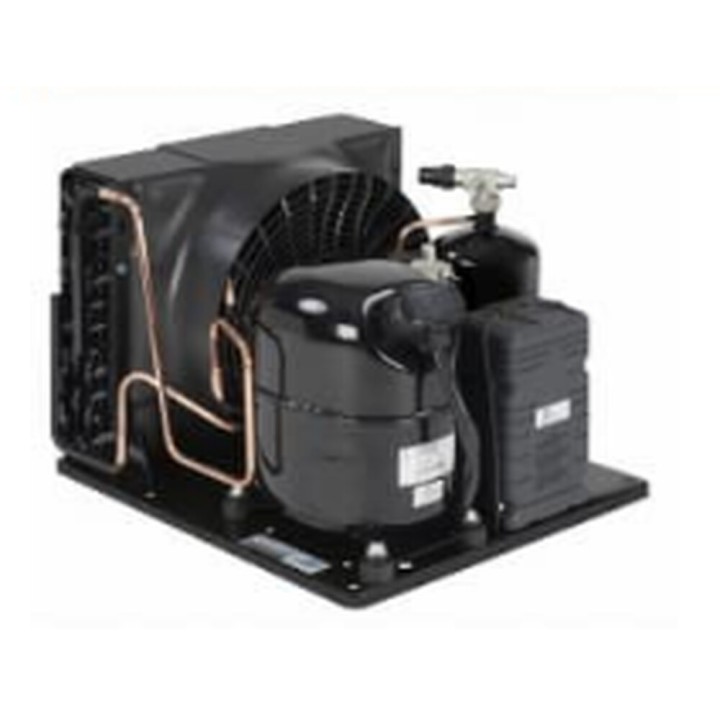

Tecumseh Air-Condensed Airtight Unit Tfht2511Zbr Three-Phase Boiler 400V/460V 2 1/2Cv Low Temperature 68Cm3 images
Tecumseh Air-Condensed Airtight Unit Tfht2511Zbr Three-Phase Boiler 400V/460V 2 1/2Cv Low Temperature 68Cm3
PK101907 ✅ R448A / R449A / R452A.
✅ Performance figures given with ambient temp. +32 °C, superheat 10K, subcooling 3K. T - Tropicalised units for ambient up to +46 °C.
✅ At low temperature, performance calculated with R449A.
✅ For a temperature of -35ºC, R452A must be used.
✅ Technical specifications.
✅ Unit type: Air. Refrigerants R-452A - R-449A.
✅ Working range Low.
✅ Compression technology Hermetic reciprocating.
✅ Voltage type Three-phase.
✅ Application range -40°C to -10°C.
✅ Voltage 400 / 3 / 50.
✅ Displacement 74.2cm³.
✅ Cooling capacity - 35ºC 1296W.
✅ Voltage 400V.
✅ Application Capillary/Valve. Int. Max. Amp. 8.7A.
✅ Connections. suction ODF 5/8".
✅ Liquid connection. 3/8".
✅ Condenser fan blade diameter 350mm.
✅ Condenser air flow 1750 m³/h.
✅ Fan type AC.
✅ Dimensions (length x width x height) 607 x 512 x 436mm. Weight 50kg.
✅ Mounting type: Receiver.
✅ Receiver volume 1.5l.
-
Brand
-
ReferencePK101907
PK101907
