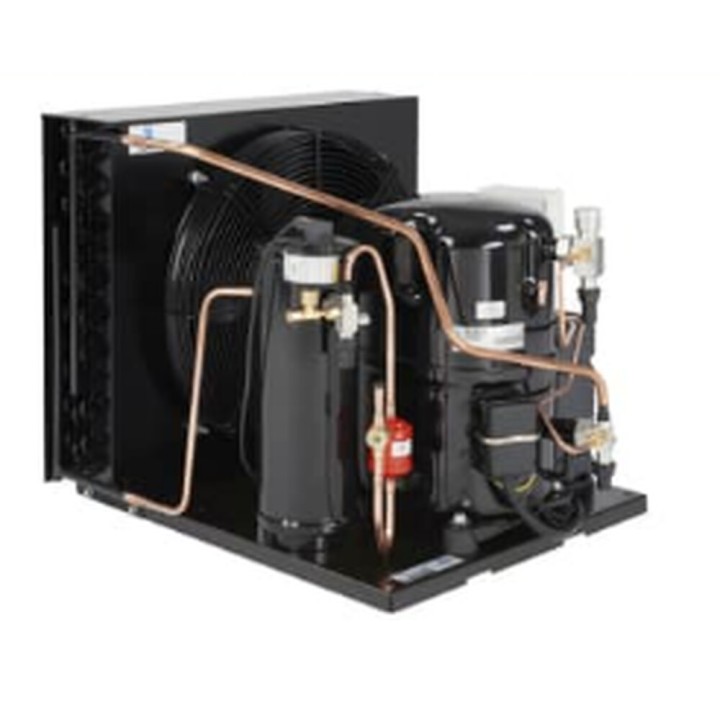

Tecumseh Air-Condensed Airtight Unit Aet4460Zhr Single-Phase Tank 230V 1/2Cv High Temperature 10.33Cm3 images
Tecumseh Air-Condensed Airtight Unit Aet4460Zhr Single-Phase Tank 230V 1/2Cv High Temperature 10.33Cm3
Ref.
PK101750
Price:
€919.09
No tax
✅ R448A / R449A / R452A.
✅ Performance figures given with R449A at mid-point, ambient temp. +32 °C, superheat 10K, subcooling 3K.
✅ T - Tropicalised units for ambient up to +46 °C.
✅ These units include: high/low pressure switch, junction box for electrical components.
Technical Specifications©
Unit Type Air Refrigerants R-452A - R-449A
Working Range High
Piston-Tight©Compression Technology
Type: Monophosic Tension
Application Range -15°C +15°C
Tension 240 / 1 / 50
Displacement 8.85Cm³
Voltage 220V
Cooling Power -10ºc 678W
Capillary Application/Valve
Int. Max. Amp. 5.5A
Connex. Aspiration. Odf 3/8"
Liq Connection. 1/4"
Condenser Helix©Diameter 250Mm
Condenser Air Flow 500 M³/H
Ac Fan Type
Dimensions (L X W X H) 501 X 346 X 303Mm
Weight 25Kg
Type Of Boiler Assembly
Container Volume 0.75L
-
